Muchmore Hybrid Touch AC/DC Balance - MM-HBTK

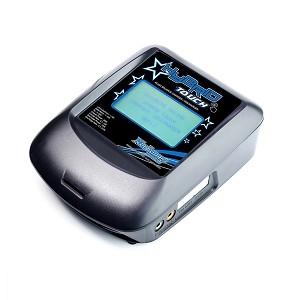

Muchmore Hybrid Touch AC/DC Balance

SMART COMPACT AC/DC CHARGER & DISCHARGER
Muchmore Racing's HYBRID TOUCH Charger is compact size, super Light Weight design and equipped with smart features. Efficient battery management function helps manage the battery in the best condition even during the race, as well as general driving.10 setup value memorize function.

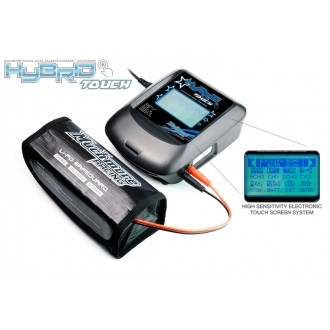

HIGH SENSITIVITY ELECTRONIC TOUCH SCREEN SYSTEM
New designed touch screen with white color back light. It can be accessed instantly each menus with intuitive function. Compact hybrid touch charger equipped smart features. Efficient battery management function helps manage the battery in the best condition even during the race, as well as general driving.

IC TEMPERATURE TWIN COOLING FAN
IC controlled twin cooling fans protect from high temperature of device.

EUROPEAN STYLE OUTPUT PORT & BALANCE PORTS
HYBRID TOUCH Charger built Li-Fe or LiPo 2 ~ 6S cell XH2.5 balancing ports all in one, no need a separate balancing board.

AC/DC INPUT / TEMP SENSOR PORT
Hybrid Touch charger attached built-in DC power supply. You can use input AC100~240V or DC 12~15V. If you use input AC100~240V, it can be use connect DC input port other RC equipment Max 4A add. If you use optional part - temperature sensor, you can check the battery temperature.

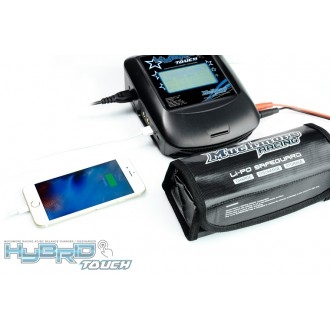

USB CHARING PORT
USB port and 5V / 2.1A output, you can charge your smartphone and other devices.

Specifications:

Input Voltage: DC 11~18V / AC 100~240V

Charge Current: 0.1~10.0A

Charge Power: MAX 80W

Discharge Current: 0.1~2.0A

Discharge Power: MAX 10W

Balance Current: MAX 450mA

Balance Tolerance: ±0.01V

Charging Capability (NiMh/NiCd): 1~16 cells

Charging Capability (LiPo/LiFe/Lilon): 1~6cells

Pb Battery Voltage: 2~20V

USB Port: 5V / 2.1A

Weight: 605g

Size: 180x145x57mm

 Includes:

• Muchmore Hybrid Touch AC/DC Balance Charger&Discharger (1pc)
• AC INPUT WIRE (1pc)
• TAMIYA Charging Lead (100mm) (1pc)
• Ultra 2P Connector Charging Lead (100mm) (1pc)

http://www.muchmoreracing.net/download/MM-HBYK_Hybrid_Touch_manual.pdf
