iCharger 4010 Duo is designed with safety as the number one priority. Numerous cut-off and safety features are offered to the user.
Two Independent Channels
iCharger 4010 Duo is a two channel independent charger. The charger is capable of charging 2 separate 10s packs on each channel. That’s a total of 20s! Each channel is independent and can be used for different batteries or charge / discharge cycles at once.
iCharger 4010 Duo is the most powerful iCharger model. Featuring up to 40amps (1200 watts max) on each channel, or 70 amps (2000 watts max) when used synchronous mode. Synchronous mode is when both channels are wired in parallel to charge one battery pack. In this mode, the chargers total combined output current is maximum 70amsp and 2000 watts.
iCharger 4010 Duo can charge any type of battery chemistry. Including all popular Lithium battery chemistries (Lipo, LiFe, LiLo), Nickel Metal Hydride (NiMh), Nickel Cadmium (NiCd), Sealed Lead Acid, Deep Cycle Lead Acid, Starter Lead Acid batteries and much more.
Balance Charge Options
The iCharger 4010 Duo has a built in integrated cell balancer and can be used with three types of lithium batteries (LiPo, Lilo, LiFe). iChargers design uses accurate balancing techniques to ensure that the voltage of each individual cell is the same during charge. Other battery chargers evaluate the battery’s charge state based on the total voltage of the pack, not each individual cell.
Greater control over balance charge setting. Ability to either set to start balance charging when voltage reaches a user set value, or start balancing from beginning or part way through the (Lithium) charge cycle. Feature set balance settings offer greater user control of the charge cycle.
Unique battery monitor function. Allowing user to monitor battery voltage (per cell), temperature, power and much more, while in normal use. This is a unique function that offers options to compare battery performance, check the condition of a battery, and establish if the battery is suitable for its intended application.
Regenerative Discharge Over Two Channels
64 Memory Function
iCharger 4010 Duo features 64 programmable memories. Allowing the user to pre set any numerous charge, discharge and safety settings to one of the 64 available memories. Easily and quickly recalling the settings any time, avoiding the need to constantly change the charger settings when charging different batteries or multiple battery packs in parallel.

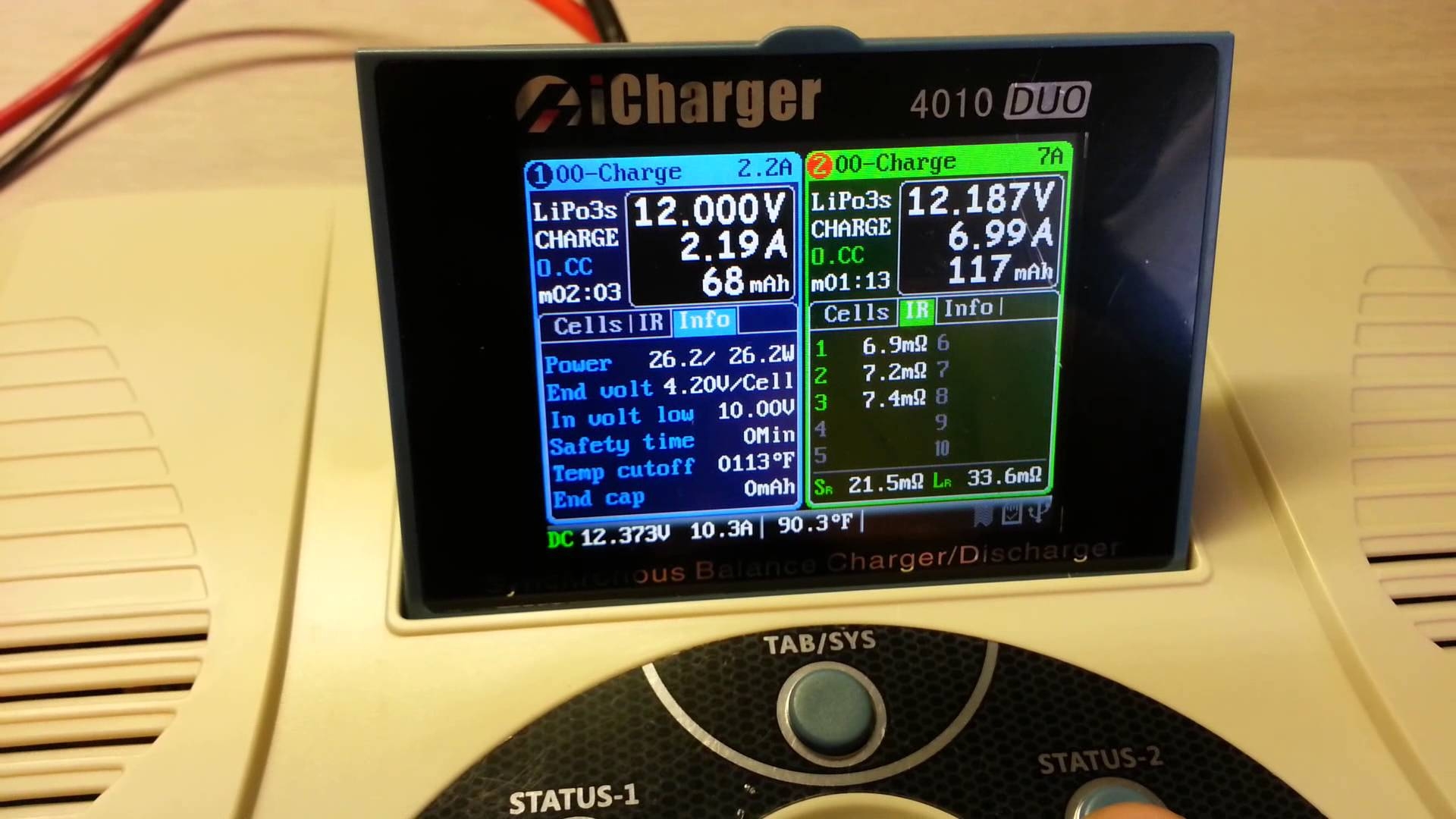

iCharger 4010 Duo features a large TFT LCD screen that provides rich information including current, voltage, power, capacity, internal resistance, control status, charge time and much more. More data than ever before!
Servo and Pulse Test
iCharger 4010 Duo includes built in Servo test special function. Utilising the large TFT screen, the user is able to view a clear graphic display off the servos speed, senility, fixed point and much more.
iCharger Servo Test function include; Linear Rest, Fixed Point Test, Speed Test and Auto CW/CCW Test.
iCharger 4010 Duo is firmware upgradable via its USB connection to a PC.
iCharger 4010 Duo supports “logview” software. Allowing analysis and display of charge and discharge data. This gives you an extremely accurate comparison and analysis of the battery condition and performance.
SD Card Slot
iCharger 4010 Duo features an SD car slot. Allowing user to save charge and battery data to an SD card.
