Since the release of the very first T1 back in 1999, Team XRAY has worked very hard to win the most acclaimed title of World Champion. Over the years, Team XRAY was a strong contender on many occasions and achieved several podium finishes at the World Championships, while the overall title slipped away by a fraction.
Finally, after almost 20 years of dedication and passion from our team of drivers and designers, the first World Champion title in the 1/10 electric touring class was achieved by XRAY’s Bruno Coelho.
XRAY – The World Champions
XRAY’s factory team driver Bruno Coelho already demonstrated the capabilities of the new platform using an early prototype to set TQ and win the title at the European Championship 2019. Since that achievement, the final version of the new platform was fine-tuned to raise the performance level even higher.
From national titles around the world… through ETS Champion titles… all the way to the European, Asian, and USA Championship titles… and the recent World Champion title, the T4 has an astonishingly long and strong history of victories to support the winning heritage of the XRAY T4 platform.
”Following thousands of hours of track-testing with the factory team around the world and thousands of hours in R&D and prototyping, the result is an outstanding race car that is a masterpiece manufactured and machined in-house in Europe, with the extreme precision you would expect from XRAY. I am very proud to present you the new T4.”
In 2016 XRAY was the first team to sweep the overall championship titles in all three classes at the ETS, including 1/10 Modified, Stock, and Formula… setting a new standard to beat!
A year later in 2017 Team XRAY repeated its wins of both Modified and Stock classes, with Bruno Coelho becoming back-to-back ETS Champion in the Modified class and Alexandre Duchet winning the Stock class.
In 2018, Team XRAY repeated its dominant performance and won the overall ETS Championship titles in all three classes again: Modified, Stock, and F1.
In 2019, Team XRAY once again claimed the title in F1 and F1 40+ class, and the most prestigious Modified TC class for the 4th time in a row. Using the prototype in the modified class, the XRAY team won the final three events of the season.
Since the release of the first XRAY touring car in 1999, XRAY has been a driving force in the 1/10 electric touring car racing scene. Continuous development and evolution of the XRAY product line has led to ever-increasing performance.
XRAY’s commitment to craftsmanship, durability and performance is unsurpassed. Be part of the family, live the heritage.
Designed, developed, and fully manufactured in-house at the XRAY factory in Slovakia, Europe, using the most high-tech German and Swiss machines and premium European materials, crafted with XRAY's trademark attention to detail by our production specialists. The T4 is truly a masterpiece.
The T4’21 platform was tested for performance improvements across all track conditions to have the car at the highest competition level out of the box. But even with this goal, there are still enough differences in track conditions that it can require different components for maximum levels of performance.

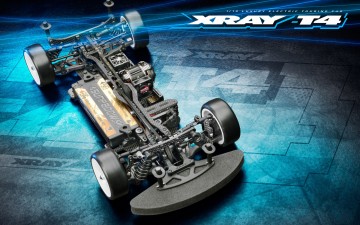

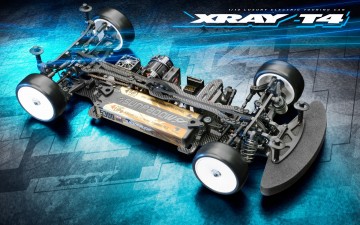

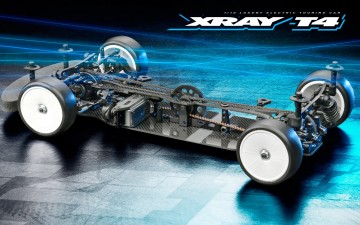

To allow the customer to choose their ideal starting point, there are three versions of the T4’21: the Graphite, Flex Aluminum and Solid Aluminum Edition. Each version features all the same components except for the chassis plate.
All-new chassis is redesigned to work with the new motor mount, T-brace and features holes for centering pins for RF suspension blocks. The holes for short arms mounting system are removed for improved durability of the chassis.
Retained from the previous year, the mid motor chassis layout is designed to accommodate the new center drivetrain system and the narrow mounts for the long arm suspension.
There are three chassis alternatives to choose from when selecting the kit, 2.2mm graphite or 2.0mm aluminum flex chassis or 2.0mm aluminum solid chassis.
The 2.2mm thick chassis is CNC-machined from premium-grade graphite material. This chassis is developed for all asphalt conditions. The narrow chassis is only 86mm wide with a variety of chassis flex adjustments that help to generate exceptional traction and give excellent steering characteristics.
The 2.0mm thick aluminum flex chassis is CNC-machined from premium Swiss 7075 T6 aluminum, then black coated and laser engraved. The ultra-narrow chassis is only 84mm wide and features special cut outs that provide the chassis flex characteristics suitable for a variety of the medium grip surfaces. The bottom of the chassis is tapered to reduce contact between the chassis and the ground while turning to improve cornering speed.
The 2.0mm solid aluminum chassis is available for high traction conditions such as US black carpet tracks.
New motor mount is machined as a single piece and now features an integrated belt tensioner to control the rear belt tension more precisely. The motor mount is also part of the new chassis bracing layout that can link the mount, T-brace and chassis for more flex control choices.
The motor mount is made from 1 piece instead of 2 pieces (motor mount + post in previous version) to eliminated unwanted tweak and to make the motor mount more durable.
The motor mount also includes the mounting provisions for the battery backstop for simplified pack installation.
The motor and layshaft mounts are integrated into a one-piece design that is placed in the absolute center line of the chassis. The new motor mount features a pressed-in steel layshaft axle that is positioned in the middle of the chassis with the motor located to the rear of the layshaft.
The motor mount is designed to have super low CG design but still robust enough to resist bending in the serious crashes.
The motor mount is installed on the chassis with 5 screws. One is placed in front of the layshaft axis, and the other 4 screws are located to the rear and can be removed for further chassis flex adjustment.
Machined from premium Swiss 7075 T6 aluminum and black anodized.
The previously optional T-brace is now included as a standard feature in the T4’21 as it was used in almost all conditions on both asphalt and carpet surfaces by team drivers and customers alike. The brace made the car more stable, generated more rear traction and allowed chassis flex adjustments to alter steering characteristics by adding and removing screws from the brace.
The updated T-brace can now be connected to the motor mount to create an even stronger center structure which makes the car more stable and easier to drive while pushing the pace even faster.
The new top deck is narrower in the front section for improved steering characteristics and forward traction. The profile of the rear section was updated for improved clearance around the motor for better fitment to allow a wider range of gearing and motor positions typically found in spec class racing.
The top deck was designed to work with the new center layshaft location in the middle of the chassis. Made from 2.0mm graphite material, the shape of the top deck has been specifically designed to achieve maximum traction and great steering characteristics at the same time.
The top deck is perfectly symmetrical to achieve the ideal, consistent flex behavior.
Optional 1.6mm graphite top deck is recommended for use in low- to medium-traction conditions with the optional alu chassis.
New bulkheads are refined with improved rear arm clearance when using the high roll center positions without rear arm modification.
Bulkheads were completely redesigned in 2020 to work with the long arms and narrower suspension holders. The bulkheads feature a super low anti-roll bar mounting position that allows the anti-roll bar wire to be placed under the drive shafts to significantly lower the CG.
The bulkheads feature 1mm milled grooves for the ball bearing hubs that moved the bulkheads 1mm closer to the chassis center line from each side.
Made from premium Swiss 7075 T6 aluminum, black anodized.
The body stop system is an all-new feature. The graphite battery stops are mounted into the modified C hubs with a height adjustable position to control when the body touches the graphite stops. Thanks to this new system, the body can be placed lower in front to improve high speed steering and stability of the car.

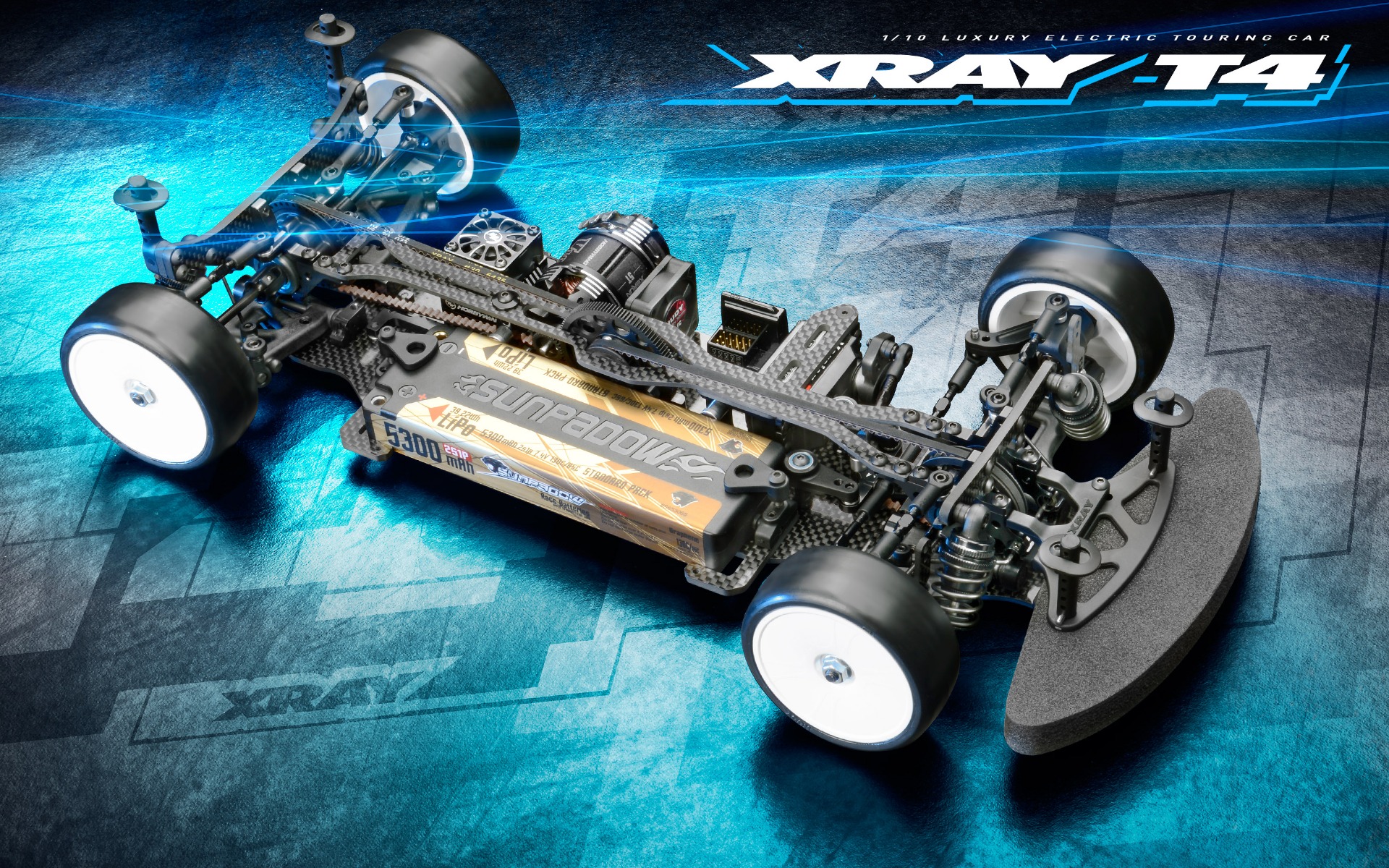

New tweak-free, fully adjustable Quick Battery Mounting System offers simply and secure battery installation without tape and without adverse effects on chassis flex. The new system controls the positioning of the pack in the chassis while at the same time reducing the battery pack’s impact on chassis flex, resulting in more consistent handling and stability.
Smart battery holders are specifically designed for LiPo batteries and are reinforced for harder impacts. The battery holders prevent the batteries from moving under racing conditions and crashes.
The battery backstop system was redesigned for use with the increasingly common shorty batteries. Now integrated in motor mount for easy assembly and adjustment.
The battery backstop prevents batteries from moving in a crash. In the front, the backstop is mounted on the servo mount; in the rear, the motor mount.
The new composite front upper bumper brace is included in the kit to prevent chassis damage in serious crashes. The brace was designed to distribute the forces from a big impact to reduce damage to the chassis plate.
New RF blocks feature a centering pin for more precise mounting and for more consistent and accurate rear toe settings.
The 8mm steering plate is now included in the kit. Based on the racer feedback, the 8mm plate was preferred for both modified and spec classes in nearly all conditions and surfaces, and is now standard in the kit for improved performance right from the box. The main advantage of the 8mm steering plate is a smoother turn in characteristic and improved cornering speed.
The Swiss 7075 T6 aluminum steering plate was designed to significantly reduce play of the entire steering system, making the steering more responsive and precise. The bearings are factory pressed into the steering plate to eliminate excess play in the assembly.
New steel outdrives for the solid axle are now included in the kit as another improvement in out of the box performance based on customer feedback. The steel outdrives replace the previous standard composite outdrives.
The 52mm ECS drive shafts are now standard in the T4’21 based on the racing experiences over the last year. The 52mm was preferred by many spec class racers in most conditions to improve the car performance right from the box, increasing stability and cornering speed.
50mm and 51mm ECS drive shafts are still available to tune to particular track conditions.
The XRAY ECS drive shafts equalize the speed between the drive shaft and the wheel. With a unique 2-piece joint between the axle and the wheel, an extreme wheel turning angle is divided into two shallower angles without causing binding. Regardless of cornering speed and wheel angle, the inner wheel will not bind or vibrate. Drive through the corner is more stable, more precise, and easier.
With the ECS drive shafts, wheel vibrations and noise are decreased to minimum, steering is increased, and cornering speed & smoothness are noticeably increased.
Drive shafts are exclusively manufactured from special world-renowned, top-secret, self-developed HUDY Spring Steel™. The drive shafts are strategically lightened – see the hollow end of the dog bone – to guarantee the lowest possible weight without compromising strength or durability.
These specially lightened drive shafts can only be manufactured from special HUDY Spring Steel™ which was developed for extreme racing conditions. The drive shafts have been additionally hand-ground for maximum precision and to provide true rotation and unbinding drivetrain operation.
A common setup configuration in previous years was changing the kit springs from the standard 2.5 F/R to the 2.5-2.8 F and 2.6 R. For 2021, the T4 includes that popular spring combo as stock equipment.
With an intelligent design, the full range of existing XRAY SLP springs may also be used in the ULP shocks, so you can still use the entire range of springs from previous T4 cars.
The 4S springs - like all other XRAY springs - are manually measured, selected, and matched into pairs to guarantee precisely equal length and damping characteristics.

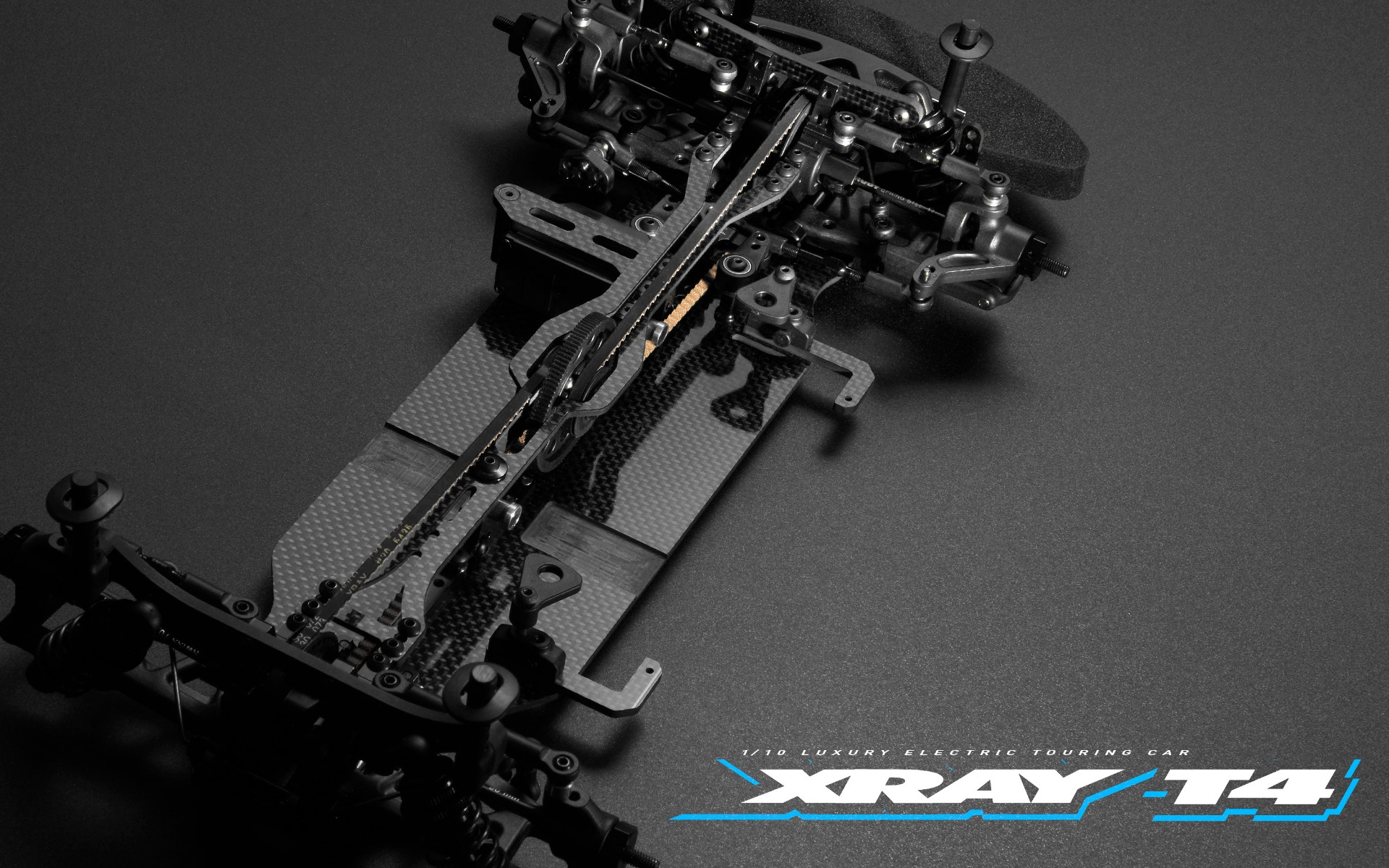

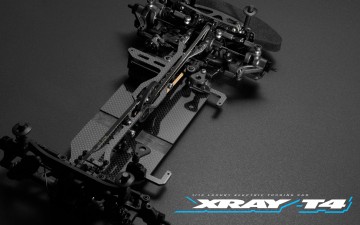

All parts are now black anodized including shocks and steering system for stealth looking black design.
An all-new feature are the QR codes in the Instruction Manual. When building the car scan the code to be directed to an online video made by Alexander Hagberg that explains the set-up features in detail.
Designed in virtual reality using the world's most sophisticated CAD tools, and manufactured using the world's best machining and molding machinery, the T4 achieves a level of perfection in all details that is second to none.
The T4 is typical XRAY: ultimate professional, high-competition RC car for the most demanding racers, developed with attention to the finest detail, and backed by premium service & support…a luxury masterpiece.
