Xpert Servo Low-Voltage Standard SI4431 6,0V Torque 17,50 Kg-cm, Speed 0,080 sec/60°

€ 69,99 (inclusief btw 21%)
Niet op voorraad
Specificaties
Productcode 799666522680
EAN code 799666522680
Productcode leverancier XPESI4431
Bruto gewicht 0,30 Kg
Omschrijving

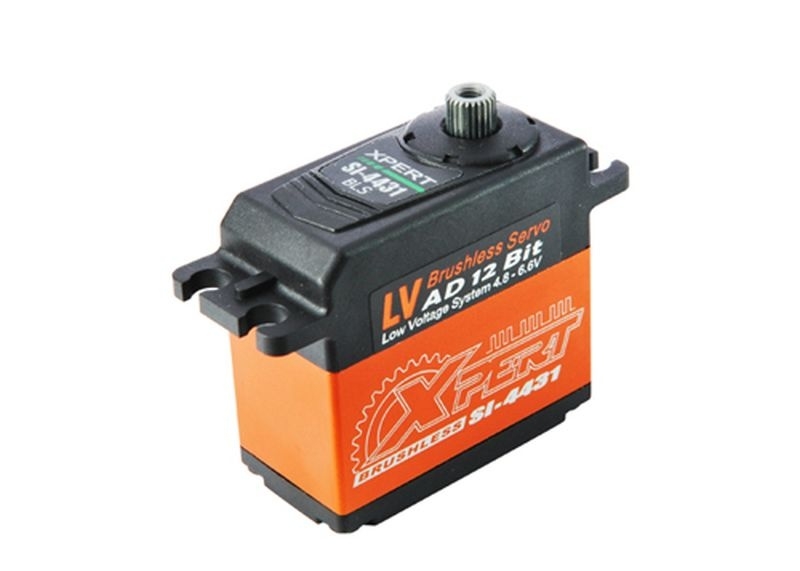

Xpert SI-4431 servo

  Features
  • Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
  • 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
  • Light weight design
  • Aluminum middle case for optimized thermal dissipation.
  • Strong Metal Gear
  • Glitch-free
  • Sophisticated error correction
  • High-Speed, High-precision 12-bit AD converter and CPU calculation
  • Fail safe
  • Over current protection
  • Over temperature protection
  • Start sonorant

Specifications

Type Standard
Product Name SI-4431
Part Name SI-4431
Power Supply 4.8~6.6V
Speed (sec/ 60°) @4.8V: .100 sec/60° @6.0V: .080 sec/60° @6.6V: .070 sec/60°
Torque (oz/in) @4.8V: 194.32 oz-in @6.0V: 242.90 oz-in @6.6V: 267.19 oz-in
Torque (kg/cm) @4.8V: 14.00 kg-cm @6.0V: 17.50 kg-cm @6.6V: 19.25 kg-cm

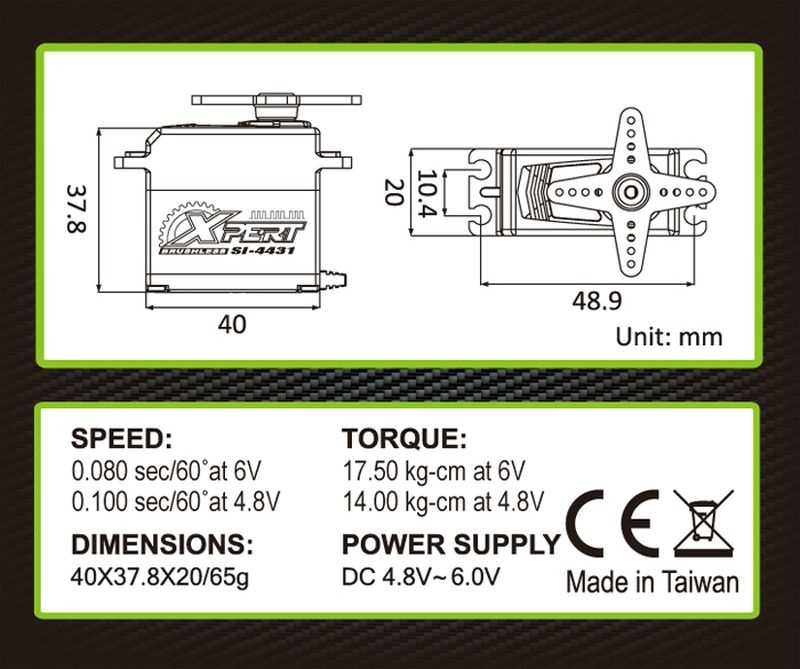

Dimensions 40x37.80x20 mm
Weight 62.5 g
Frequency 200/333 HZ
Range 50~400 Hz
Center Position 1520 μs
Applications Car
Uper and Bottom Case XP-01
Hardware Parts Xpare-01
Gear Set XGS72320
