Xpert Servo High-Voltage Standard SI4401-HV 8,4V Torque 18,80 Kg-cm, Speed 0,079 sec/60°
€ 88,50
(inclusief btw 21%)
✘ Niet op voorraad
Specificaties
Productcode
XPESI4401HV
EAN code
799666522154
Productcode leverancier
XPESI4401HV
Bruto gewicht
0,30 Kg
Omschrijving

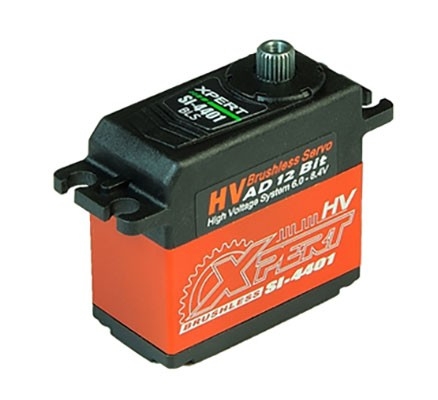

Xpert SI-4401-HV servo
Features
- Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
- Light weight design
- Aluminum middle case for optimized thermal dissipation.
- Strong Metal Gear
- Glitch-free
- Sophisticated error correction
- High-Speed, High-precision 12-bit AD converter and CPU calculation
- Fail safe
- Over current protection
- Over temperature protection
- Start sonorant
Specifications
| Type | Standard |
| Product Name | SI-4401-HV |
| Part Name | SI-4401-HV |
| Power Supply | 6.0V~8.4V |
| Speed (sec/ 60°) | @6.0V: .111 sec/60° @7.4V: .090 sec/60° @8.4V: .079 sec/60° |
| Torque (oz/in) | @6.0V: 186.41 oz-in @7.4V: 229.85 oz-in @8.4V: 260.94 oz-in |
| Torque (kg/cm) | @6.0V: 13.43 kg-cm @7.4V: 16.56 kg-cm @8.4V: 18.80 kg-cm |

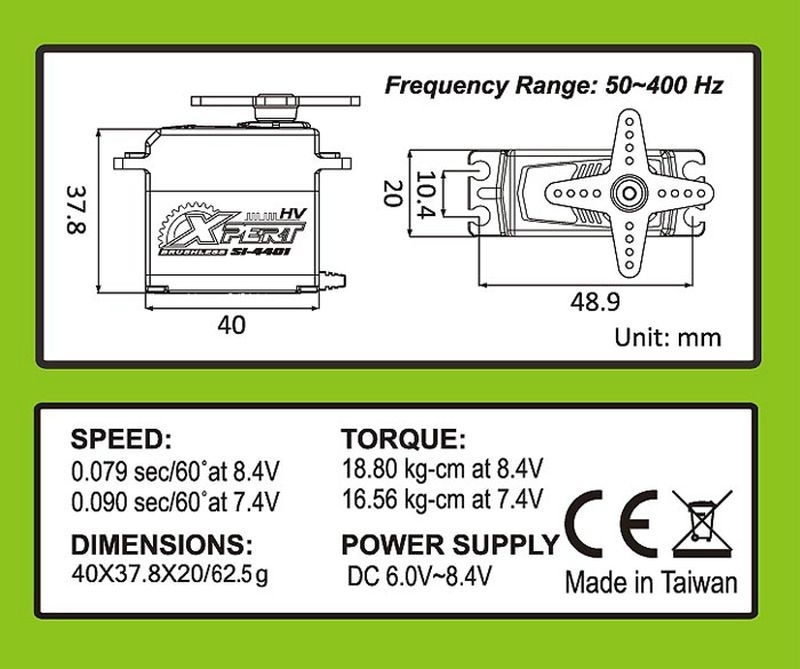

| Dimensions | 40x37.80x20 mm |
| Weight | 62.5 g |
| Frequency | 200/333 HZ |
| Range | 50~400 Hz |
| Center Position | 1520 μs |
| Applications | Car / Helicopter |
| Uper and Bottom Case | XP-01 |
| Hardware Parts | Xpare-01 |
| Gear Set | XGS72320 |
