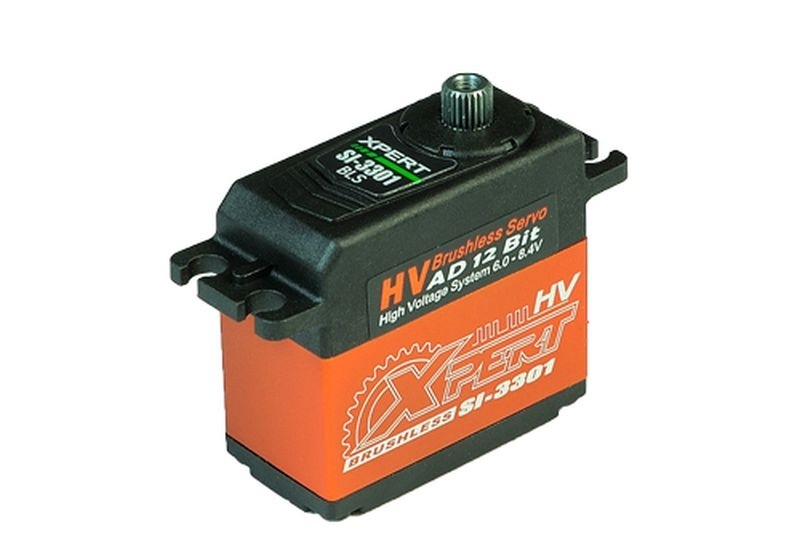

Xpert Servo High-Voltage Standard SI3301-HV 8,4V Torque 14,61 Kg-cm, Speed 0,055 sec/60°
€ 88,50
(inclusief btw 21%)
✘ Niet op voorraad
Specificaties
Productcode
799666522116
EAN code
799666522116
Productcode leverancier
XPESI3301HV
Bruto gewicht
0,20 Kg
Omschrijving
Specifications
| Type | Standard |
| Product Name | SI-3301-HV |
| Part Name | SI-3301-HV |
| Power Supply | 6.0V~8.4V |
| Speed (sec/ 60°) | @6.0V: .076 sec/60° @7.4V: .062 sec/60° @8.4V: .055 sec/60° |
| Torque (oz/in) | @6.0V: 144.91 oz-in @7.4V: 178.64 oz-in @8.4V: 202.79 oz-in |
| Torque (kg/cm) | @6.0V: 10.44 kg-cm @7.4V: 12.87 kg-cm @8.4V: 14.61 kg-cm |

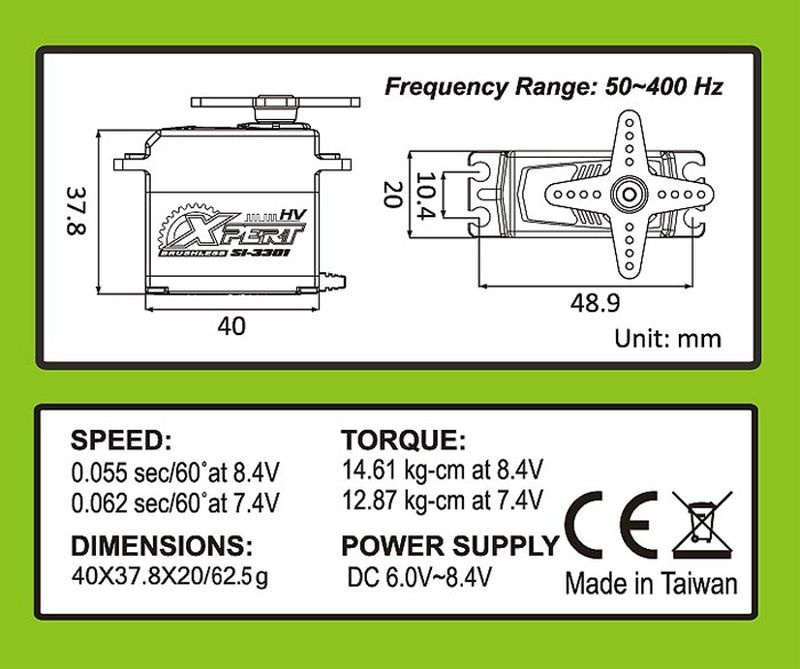

| Dimensions | 40x37.80x20 mm |
| Weight | 62.5 g |
| Frequency | 200/333 HZ |
| Range | 50~400 Hz |
| Center Position | 1520 μs |
| Applications | |
| Uper and Bottom Case | XP-01 |
| Hardware Parts | Xpare-01 |
| Gear Set | XGS71620 |
