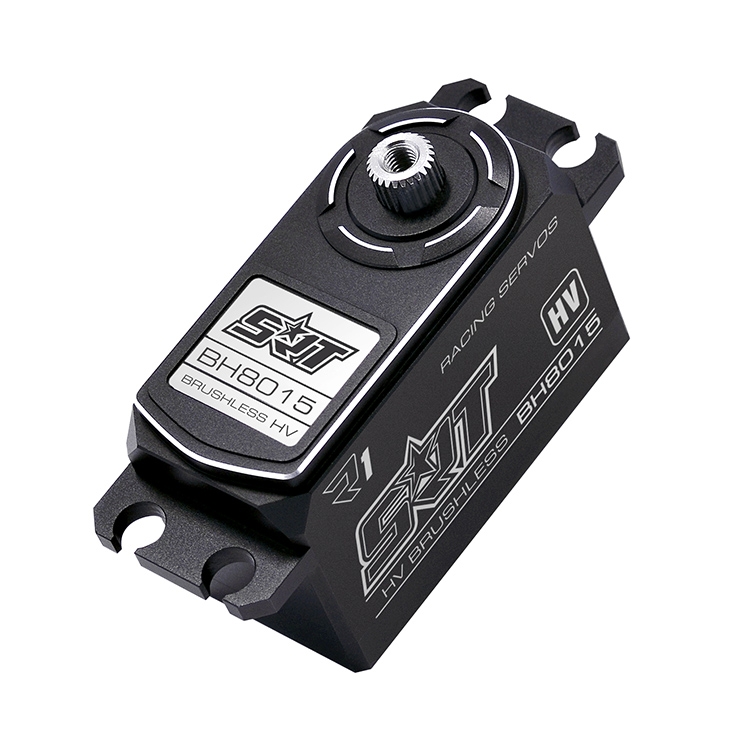

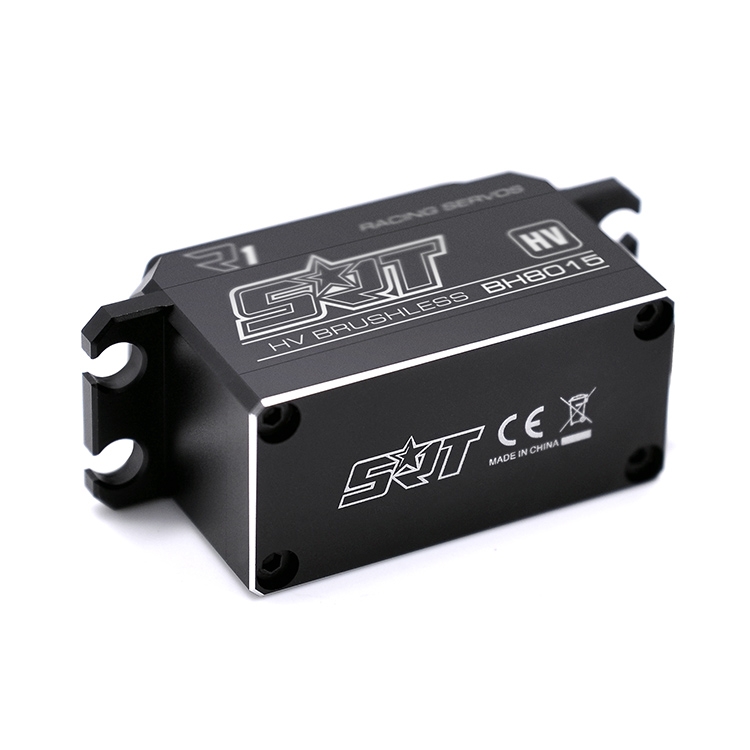

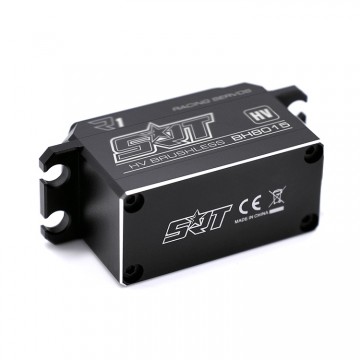

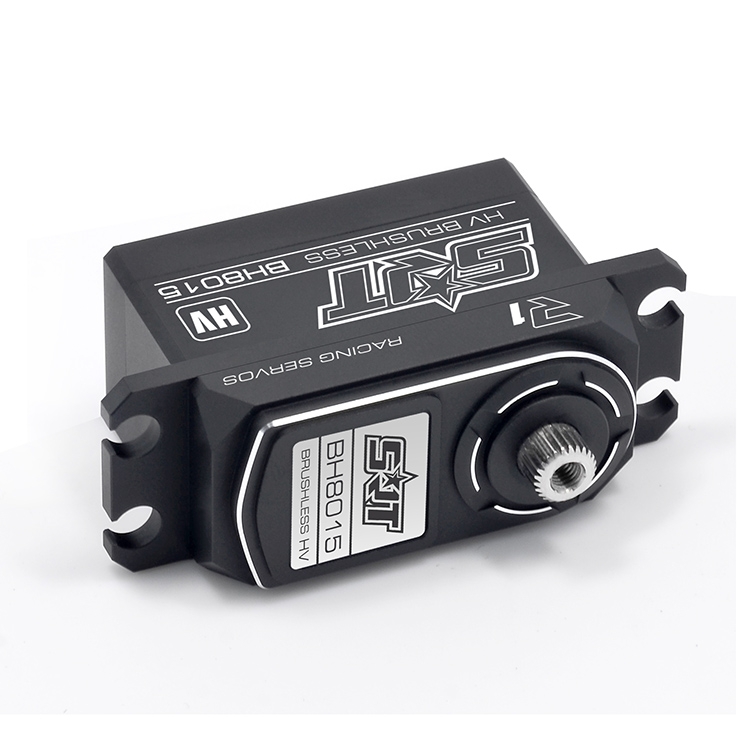

BH8015 1/10th Scale On-road HV Brushless Servo
KEY FEATURES
& Unique Mechanic Design
& incredible efficiency and low power consumption
& Standard dimension make it perfect for vehicles that can benefit from a high quality servo
& CNC Machined aluminum case for exceptional cooling
& HD 4096 Resolution
& 2 μsec Dead Band
& Superior Holding Torque
& 1-Year Limited Warranty
| Item no | 6.0V | 7.4V | 8.4V | Gear | Motor | Case | Dimension (mm) |
Weight (g) |
|||
| Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
Speed: sec/60° |
Torque: kg-cm/oz-in |
||||||
| BH8015 | 0.065 | 10.0/138.8 | 0.055 | 13.0/180.5 | 0.050 | 15.0/208.3 | Titanium & Alu | Brushless | CNC | 41.0*20.0*26.4 | 52.0 |
Application :
1/10 Electric/ Car
1/10 Nitro/ Car
Off-road
On-road
PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless

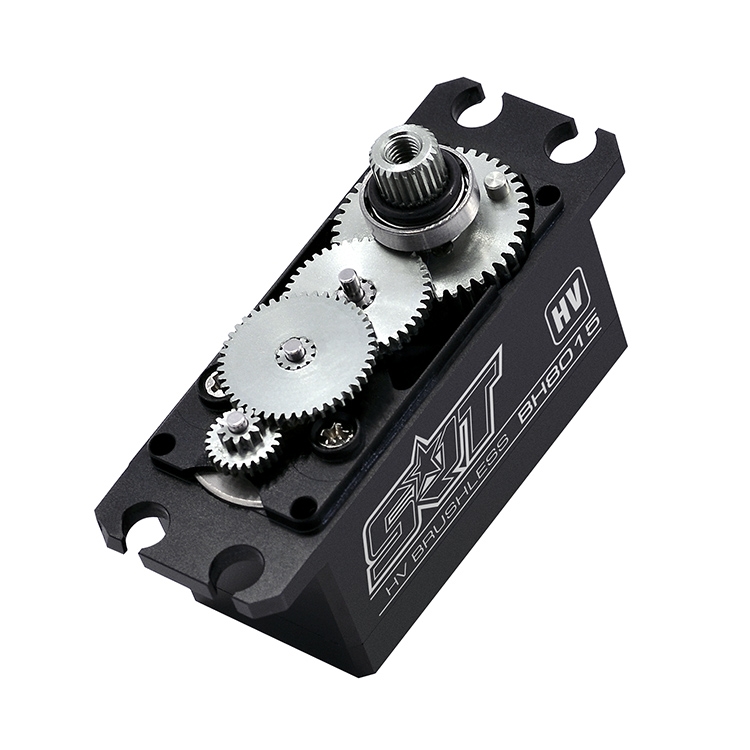

Gear Type: Metal
Gear Material: Titanium & Alu
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.065 sec/60 degrees at no load
operating speed (7.4v): 0.055 sec/60 degrees at no load
operating speed (8.4v): 0.050 sec/60 degrees at no load
stall torque (6.0v): 10.0kg.cm (138.8 oz/in)
stall torque (7.4v): 13.0kg.cm (180.5 oz/in)
stall torque (8.4v): 15.0kg.cm (208.3 oz/in)
potentiometer drive: direct drive
dimensions: 41.0x20.0x26.4 mm /1.61x0.79x1.04 in
weight: 52.0g (1.83 oz)
connector wire length: jr 180 mm
SRT SERVO OVERVIEW
The latest generation of SRT servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos are available to be customized for easy installation by OEM order.
