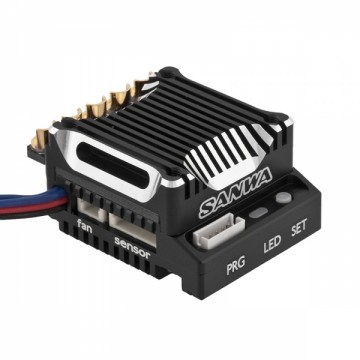

SANWA - Super Vortex Gen 2 ESC 107A54413A

Sanwa Super Vortex Gen 2 is a second generation of Super Vortex Zero Electronic speed controller.

Specifications:

• SSR- Compatible
• SSL-Compatible
• Compatible with Programming box
• Full Aluminium Case (Black Alumite Treatment)
• New function compatible with code 10 for M12S & EXZES ZZ
• Cooling Duct improves heat dissipation
• Improved Telemetry Function
• Compatible with update of software by programming box etc.

Functions:

• Full Model Change of SUPER VORTEX.
• NEW CIRCUIT DESIGN INCREASE RATED CURRENT BY 35% COMPARED WITH SUPER VORTEX ZERO (THE PREVIOUS MODEL).
• NEW FUNCTION WITH CODE 10 (SSL: Remote Transmitter Setting) FOR M12S & EXZES ZZ
• Compatible with PROGRAM BOX (Optional Item). Easy Setting and Software Update can be available through PROGRAM BOX.

DEFAULT PROGRAMMING MODE INCLUDING NEW FUNCTIONS:

• [CUT-OFF VOLTAGE]: Ensure that Cut-Off Voltage value you choose matches the battery type you're using.
• [REVERSE]: Enable or Disable Reserve function.
• [THERMAL PROTECTION]: ESC and motor over-heat protection.
• [BOOST]
• [THROTTLE PUNCH]: Adjust the punch when motor is started by throttle operation.
• [NEUTRAL BRAKE / DRAG BRAKE RATE]: Change the braking effectiveness as the throttle trigger is returned to neutral.
• [DRIVE FEEL]: Higher values increase the smoothness of the throttle in the forward and return to the neutral directions.
• [NEUTRAL BRAKE FEEL / DRAG BRAKE FEEL]: Higher values increase the smoothness of the Neutral Brake function.
• [BRAKE FEEL]: Higher values increase the smoothness of throttle in the brake and return to neutral directions.
• [BOOST RATE / TIMING ADVANCE]: Higher values increase motor performance throughout the entire throttle range.
• [TURBO]: Increase the Timing Advance at only the full throttle position by the percentage chosen.
• [BOOST STARTING RPM]: Adjust the starting position of RPM at which the Boost Timing becomes active.
• [BOOST ACCELERATION]: Increase the amount of boost rate per 1,000RPM.
• [NEUTRAL DEAD BAND]: Adjust "PLAY" (Looseness) in Neutral range.

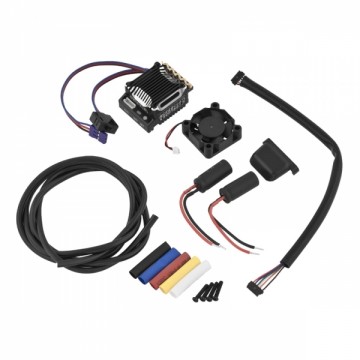

Set includes:

• Sanwa Super Vortex Gen 2 Brushess ESC
• Sensor cable
• Cooling fan
• Power wire
• Heat shrinkable tubes for connectors
• Screws
• 2 capacitors

SUPER VORTEX Generation 2 User Manual Movie

Transmitter’s Setup and Calibration of throttle position

How to change the programming mode values by ESC setup button

How to change the programming mode values by SSL (transmitter’s remote setting)

How to change the setting by Program Box

Manufacturer stock No. 107A54413A
