Sanwa M12S-RS + RX-482 receiver

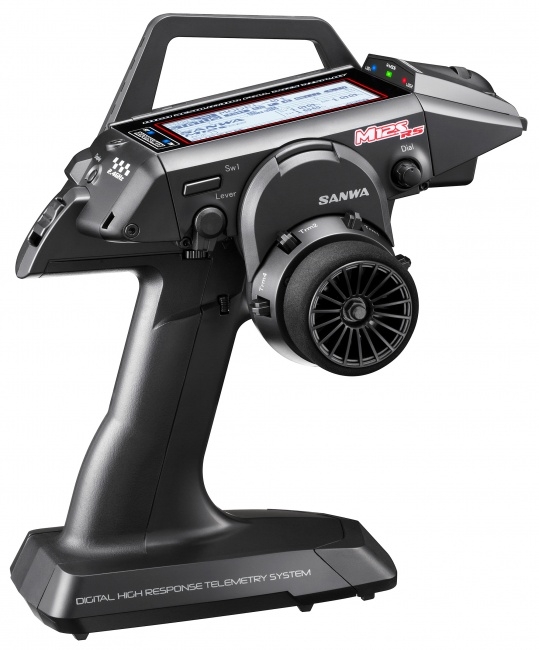

SANWA M12S-RS
Sanwa M12S-RS is a great, universal radio for semi-professional, and professional RC car drivers. Including all what's best from its archetype, a Sanwa's flagship M12S (including world's fastest transmission and response as well as genuine M12S software and SSL compatibility), it was prepared for sport-class, everyday racing, with a very attractive pricing.
The Sanwa M12S-RS set includes 1x RX-482 receiver.

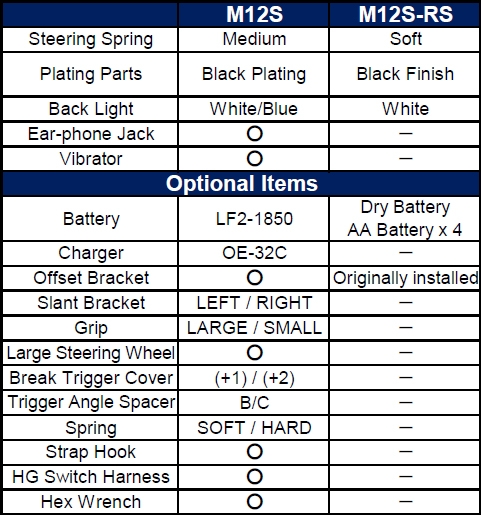

Main difference from M12S aand the Sanwa M12S-RS:
- Offset Bracket / Originally installed
- Steering Spring / Soft
- Battery / Dry Battery (AA Battery x 4)
- Back Light / Only White- Ear-phone Jack / Deletion
- Vibrator / Deletion
Optional Items of the Sanwa M12S-RS
- Slant Bracket / Deletion
- Grip / Deletion (Large & Small)
- Large Steering Wheel / Deletion
- Break Trigger Cover / Deletion
- Trigger Angle Spacer / Deletion
- Spring / Deletion
- Strap Hook / Deletion
- HG Switch Harness / Deletion
- Hex Wrench / Deletion
System Features of the Sanwa M12S-RS:
- FSTN Large Full-dot LCD（128x256）
- Switchabledriving position（Left/Right）
- MenuSelection
- Built-in Antenna
- Car-type selection
- CODE AUX
- Cross Movement
- Model Memory（50）
- Model Name（14 Letters）
- Mode（lSelect/Copy/Clear/Sort）
- RF Mode（FH4T/FH3）
- Response Mode（NOR/SHR/SSR）
- Bind
- Servo Monitor
- KeyAssign（SW/TRIM/DIAL/LEVER）
- Buzzer - LCD Contrast
- AUX Type（AUX/AUX1/AUX2）
- Point AUX
- MOA AUX
- 4WS AUX
- TRIM Type（center/parallel）
- Battery Alarm
- Log（REC/RPM/VOLT/TLM1/TLM2THPoint/RX Mode）
- BootMenu
- User Name（14 Letters）
- Information
- EPA
- TRIM/SUBTRIM
- Servo Reverse
- Fail safe（Radio wave/Battery）
- Time（rLap/Interval1/Interval2）
- Dual Rate（ST/TH/BR）
- Curve（EXP/ARC/CRV）
- Point Curve
- Speed
- ALB
- BR Mixing
- TH HOLD
- Ackerman ST
- C-MIX1/C-MIX2
- Safety Link
- Custom Menu
- Direct Model Select
- TH Type
- Offset
- CH Set
- Calibration (ex-VR) : ST/TH/LEVER
- Mechanical Rudder Angle Adjustment
[SSL(SANWA Synchronized Link) Sysytem]
SANWA NEW SSL SYSTEM
●When used with compatible RX-472, RX-482, Super Vortex Series, SV-Plus Series, the setting of ESC etc. by Transmitter is available through SSL functions while driving.
●Since the setting can be done without the stop of car, the detailed adjustment in accordance with Race conditions
is available without interruption of Intervals and the change of machine conditions.
[Response of Telemetry System]
●It is often said that telemetry system reduce response speed. However, SANWA Original Data Processing and Algorithm Design makes Telemetry possible without response speed reduction.
Our Excellent Telemetry System has no response speed reduction.
●With our telemetry system, the precious race data will help the next race setting and driving.
[Response Mode]
●Please do not use Analog Servo for SHR mode or SSR mode.
If analog servo is used for SHR mode or SSR mode, the servo will be broken and will not work.
Digital servo (SRG series, Digital ERS series, SDX series) can be used both for NOR mode and SHR mode.
●SSR mode can be used only by SRG & PGS series servo.
●In SHR or SSR mode, BL-FORCE, BL-SPORT, F3300, SBL-02 and SBL-03CR do not work.
Please use NOR mode for the above ESC.
[System Programming]
●・PC-LINK MANAGER3 for M12S Application Manual(PDF)
●・PC-LINK MANAGER3 for M12S Application Software(zip)
*Only for M12S
Please use PC-LINK MANAGER2 for M12/EXZES Z
●・Programming Version Upgrade for M12S(Standard)・・・・・・V301205(zip)
●・Programming Version Upgrade for M12S(Germany)・・・・V301306(zip)
●・Programming Version Upgrade for M12S(Spanish)・・・V301406(zip)
●・Programming Version Upgrade for M12S(Japanese)・・・・・V301506(zip)
※The above upgrade is only for M12S.
M12 or Exzes Z cannot be upgraded.
[M12S TEMPLATE]
●・TEMP01_Super Vortex Zero(zip)
This is factory-programmed standard template. Please download here if you delete it.
●・TEMP02_Super Vortex Zero TypeD(zip)
This is factory-programmed standard template. Please download here if you delete it.
●・TEMP03_SGS-01C(CODE AUX2)(zip)
●・TEMP04_SGS-01D(CODE AUX2)(zip)
●・TEMP05_2R-MODE Quick ⇔ Mild(zip)
