Xpert Servo Low-Voltage Standard SI4531 6,0V Torque 19,00 Kg-cm, Speed 0,100 sec/60°
€ 69,95
(inclusief btw 21%)
✘ Niet op voorraad
Specificaties
Productcode
XPESI4531
EAN code
799666522673
Productcode leverancier
XPESI4531
Bruto gewicht
0,30 Kg
Omschrijving

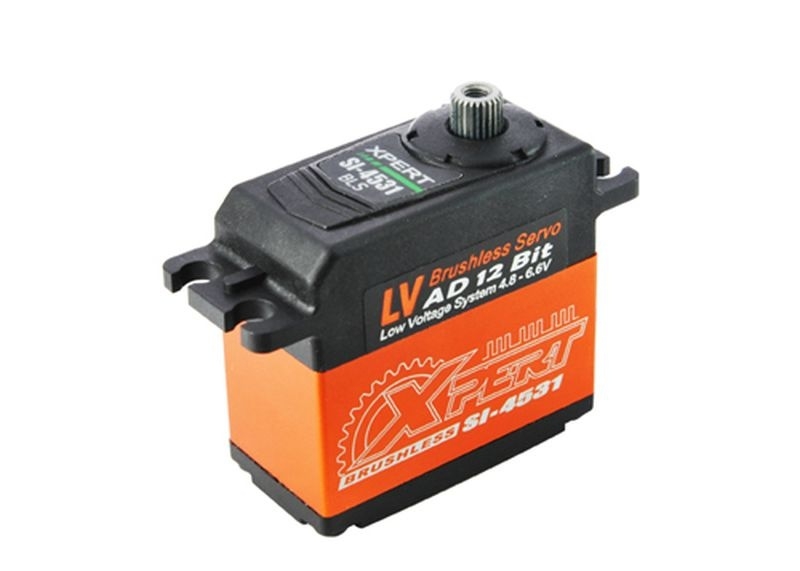

Xpert SI-4531 servo
Features & Specifications
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
- Light weight design
- Aluminum middle case for optimized thermal dissipation.
- Strong Metal Gear
- Glitch-free
- Sophisticated error correction
- High-Speed, High-precision 12-bit AD converter and CPU calculation
- Fail safe
- Over current protection
- Over temperature protection
- Start sonorant
Specifications
| Type | Standard |
| Product Name | SI-4531 |
| Part Name | SI-4531 |
| Power Supply | 4.8~6.6V |
| Speed (sec/ 60°) | @4.8V: .120 sec/60° @6.0V: .100 sec/60° @6.6V: .090 sec/60° |
| Torque (oz/in) | @4.8V: 210.98 oz-in @6.0V: 263.72 oz-in @6.6V: 290.09 oz-in |
| Torque (kg/cm) | @4.8V: 15.20 kg-cm @6.0V: 19.00 kg-cm @6.6V: 20.90 kg-cm |

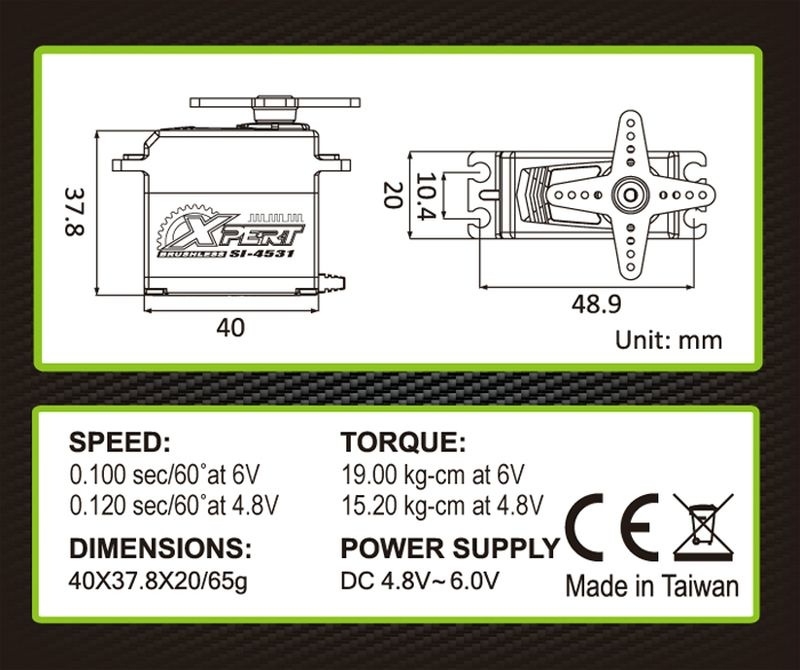

| Dimensions | 40x37.80x20 mm |
| Weight | 62.5 g |
| Frequency | 200/333 Hz |
| Range | 50~400 Hz |
| Center Position | 1520 μs |
| Applications | Car |
| Uper and Bottom Case | XP-01 |
| Hardware Parts | Xpare-01 |
| Gear Set | XGS72910 |
